Ekman (Standard) Bottom Sampler - Kit

Product Code: 196-B12

The Wildco® 196-B12 Ekman Bottom Grab Sampling Kit is a complete field kit for collecting quantitative sediment and benthic macroinvertebrate samples from lakes, reservoirs, rivers, and wetlands with soft, fine-grained substrates. The kit includes the standard 6 × 6 × 6 in. (15 × 15 × 15 cm) Ekman Bottom Grab along with the accessories needed for field deployment.

Use for obtaining samples from river, stream, or lake bottoms. Works best in soft, silty, vegetation-free bottoms. Unique of sample chamber lid and jaw assembly release mechanism offers not only positive action when activated, but also helps to reduce instability and frontal shock wave effects when lowered rapidly. 6″ x 6″ x 6″ deep sample diameter. 316 stainless steel dredge construction, plus stainless steel springs and cables. Enclosed rip release mechanism. Use 11 oz. messenger. 10 lbs.

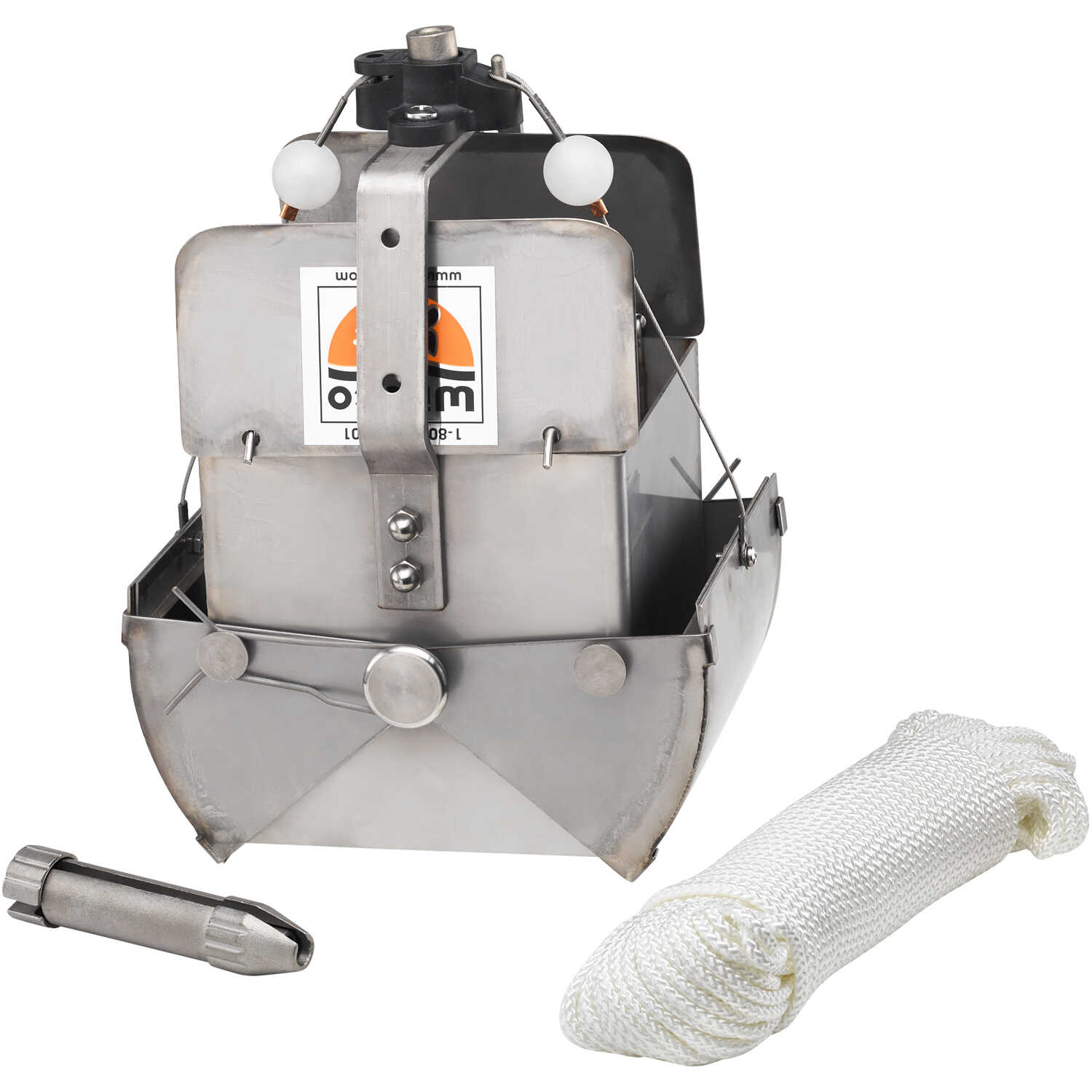

Kit Includes:

• Wildco 196-B12 Standard Ekman Bottom Grab
• Stainless steel 11 oz (45-B10) messenger
• 100 ft (30.5 m) sampling line
• Rugged carrying case for transport and storage

Key Features:

• Designed for soft-bottom sediments such as mud, silt, ooze, peat, and marl.
• Overlapping scoop jaws reduce sample loss during retrieval.
• Twin-Pin™ release mechanism provides dependable and repeatable operation with few moving parts.
• Hinged top covers open during descent to minimize water resistance and close during retrieval to reduce washout.
• Wide base provides excellent stability on soft substrates while minimizing sediment disturbance.
• Manufactured from corrosion-resistant stainless steel for long service life in freshwater and marine environments.

The optional extension handle replaces messenger in shallow water.

Specifications:
