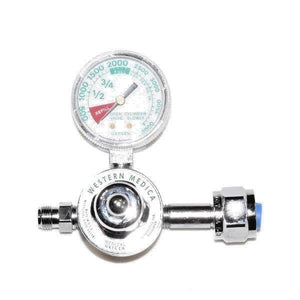

Single-Stage Preset Oxygen Flowmeter / Regulator

Chrome-plated brass body with all brass high-pressure chamber

Maximum rated inlet pressure 3000 psi

Durable neoprene diaphragm

Internal reseating relief valve protects against over-pressurization

Sintered filter for additional safety and to extend regulator life

2" diameter gauge

Flow meters available in 7 or 15 LPM. Pressure compensated at 50 PSIG, Maximum pressure of 100 PSIG. High impact lexan hood and flow tube with machined brass base. Stainless steel stem valve. O-ring sealed.
